Computer.Aided.Drafting Services:

  1. We can create and provide schematics for all entertainment portions of your event

  2. Our drawings are presented in both 2D and 3D environments to ensure accuracy and ease during the installation process

  3. We provide realistic renderings to show accurate scenes of what their event will look like

“2D and 3D Event Layouts are a business-critical part of any event—and a great way of arranging logistical details that make your occasion efficient and successful.” - Jayson T

DID YOU KNOW?

  • In order to obtain an event permit in a local municipality, it is becoming a common requirement to obtain an event design.

  • A comprehensive Event Design can reinforce operations with emergency response teams and other essential services.

  • JBT’s Event Designs include detailed locations of event necessities, such as: security detail, tents, bars, stages, barriers, and parking.

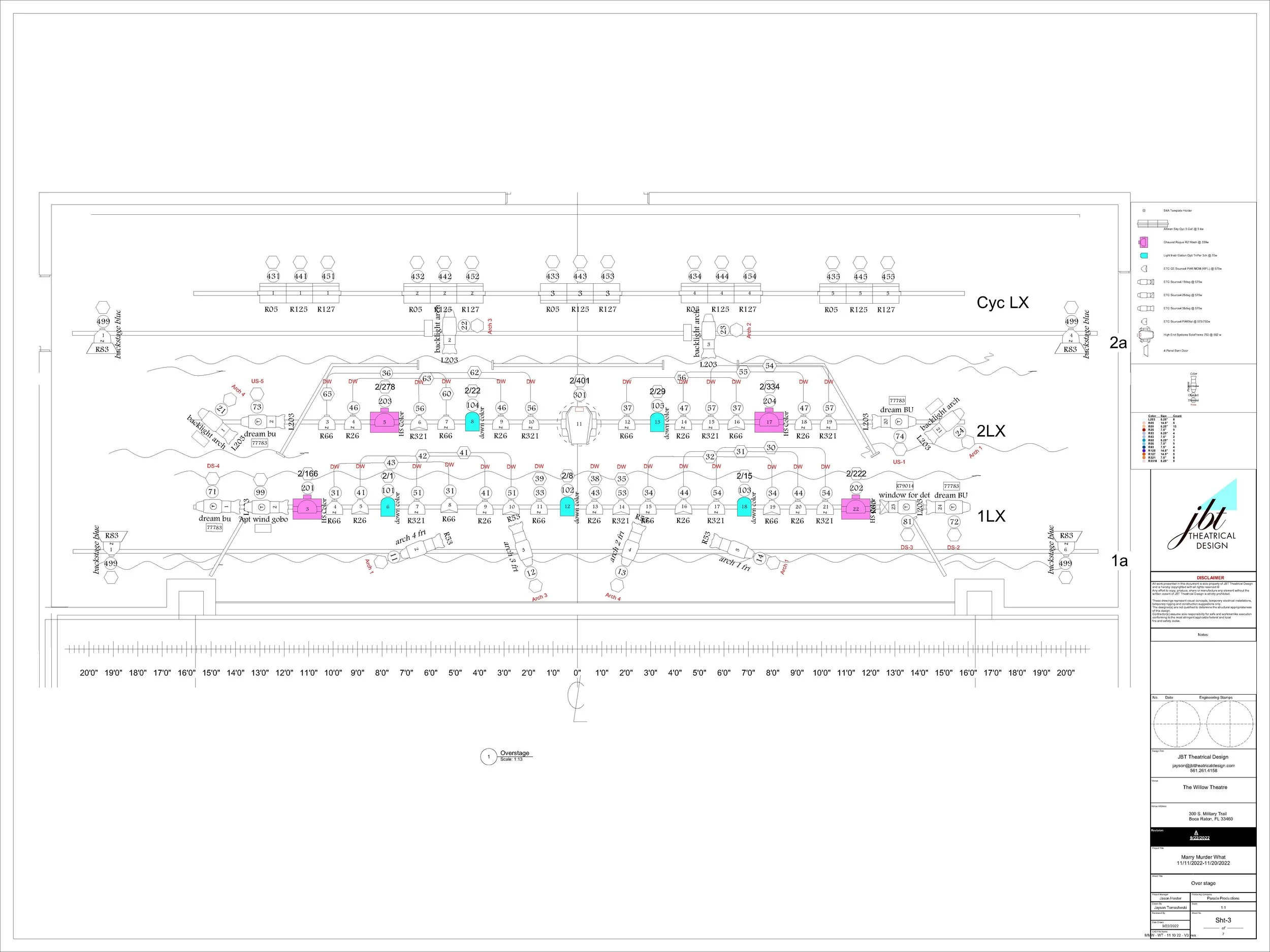

Theatre and Event Schematics

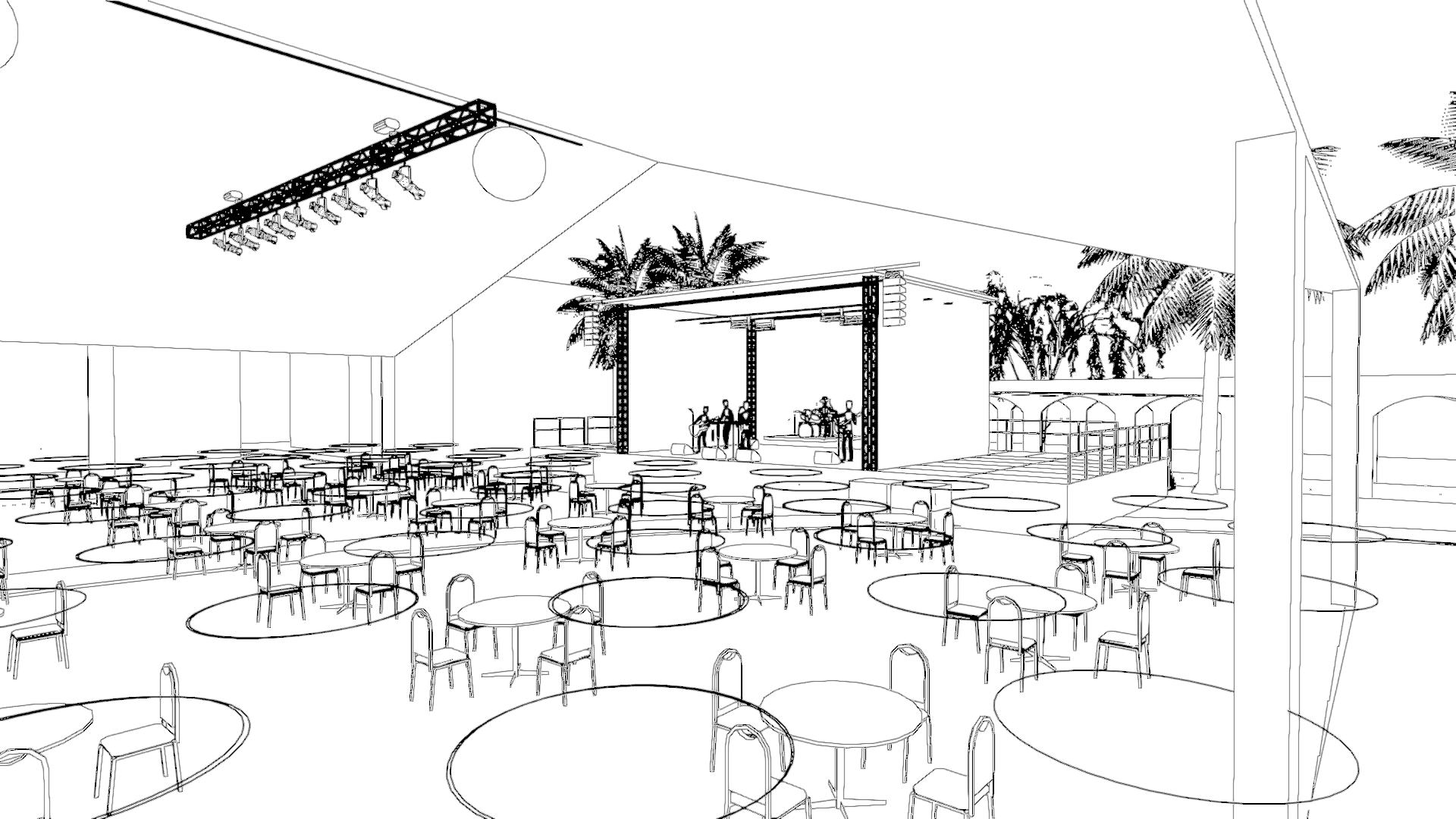

Site Plans

3d visualization and rendering

3D Visualization serves the purpose of supplying unrealized design ideas to the client in effort to better understand our design concepts. This process assists in eliminating concerns before entering into live productions.

Benefits from our conceptual designs include:

  • Pre-programming cue lists, drastically cutting program time in the venue

  • Artist renderings that can be shared with the design team

  • Test optics of lighting equipment within a certain spaces

Watch the video above to learn more about our 3D visualization techniques
